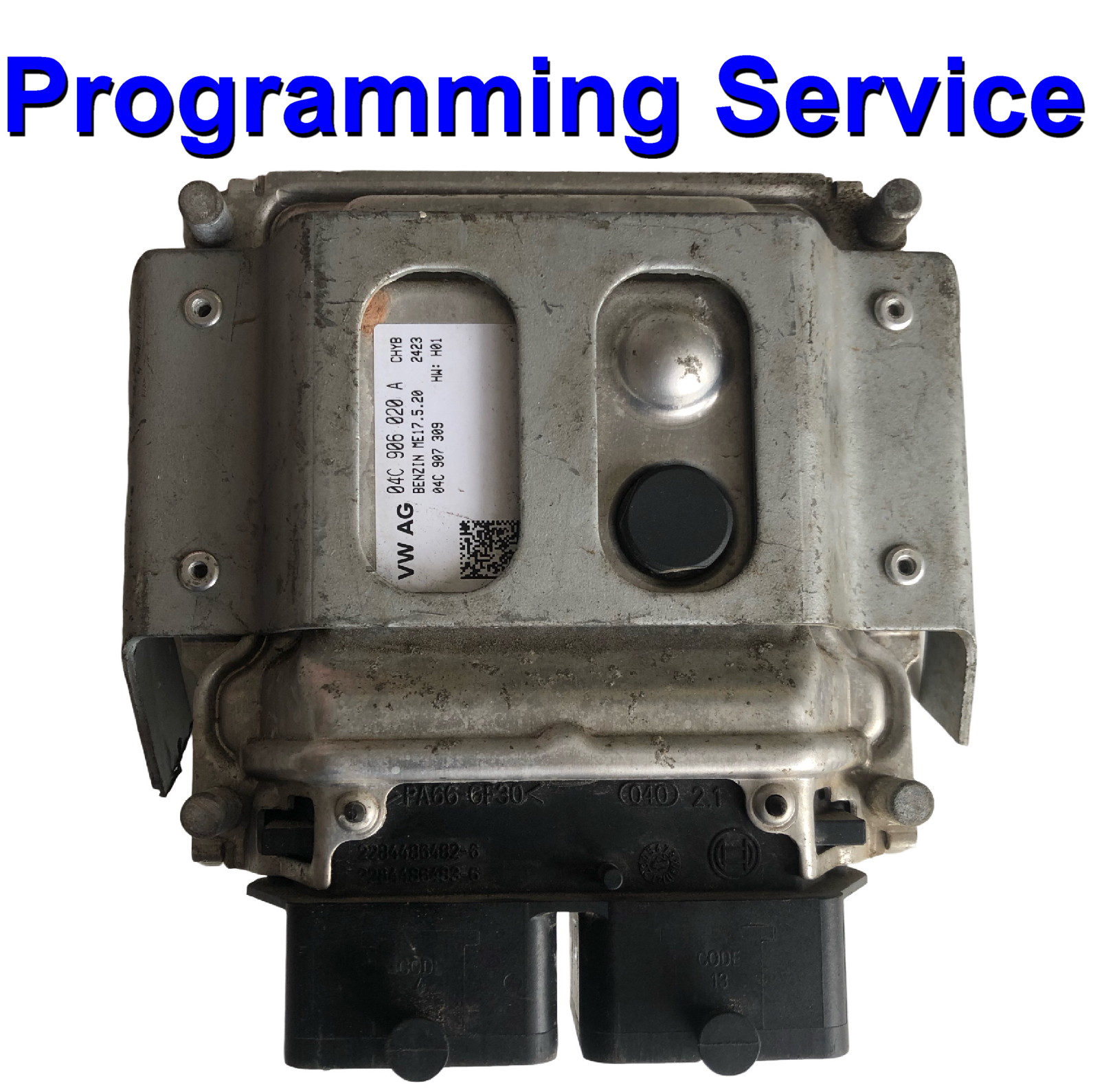

Audi Seat Skoda Volkswagen VW ECU Bosch ME17.5.20 | ME17.5.24 | ME17.5.26 | Programming Service

Audi Seat Skoda Volkswagen VW ECU Bosch ME17.5.20 | ME17.5.24 | ME17.5.26 | Programming Service

This listing is NOT to supply an ECU module – This is a Cloning / Immobilizer delete

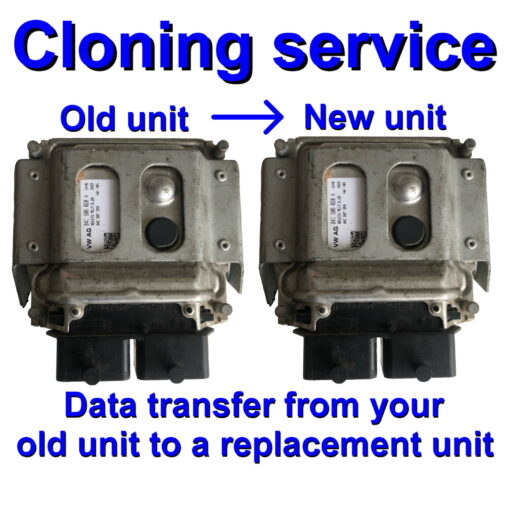

• The 'Cloning service' option above is if you have a faulty ECU (Electronic Control Unit) / Programmed component on your vehicle, for example it may be water damaged or have a blown component. If you are looking to replace the unit you may be aware that you cannot simply remove a unit from another vehicle & install it onto yours as the unit is 'Locked' to a different vehicles electronic / immobilizer system. We have the solution! Simply send us your original (Faulty) unit & the donor (Replacement) unit & we will transfer the data from your original to the replacement enabling the used unit to work on your vehicle with no further programming necessary. Once the donor unit has been programmed (Cloned) the coding of the unit will be correct & the car will start &  function as it should. The mileage display & the central locking etc will be unaffected & operate correctly. We do NOT need the PIN code from your vehicle or the donor part to do this operation *IMPORTANT* - We can only clone this type of ECU if there is still communication with your old ECU with diagnostic tools - If there is 'No communication' with diagnostic tools with your unit there may be an alternative method of retrieving your immobilizer data from a different module on your car such as the instrument cluster or BCM - please contact us with your car details for more information or choose the 'Immo delete' option for your donor unit
• The 'Immobilizer delete' option above is to be used when an ECU needs to be set to a 'Free running' or 'Immo off' state. The ECU will then fit onto the vehicle & start and run perfectly without the need of further programming of keys etc - a non transponder key can be used to start the vehicle and this service will cure a faulty immobilizer system.

If you have a problem with you VAG group car with the following problem: Non start / no crank with the immobilizer light flashing & the fault code of ‘Start blocked by immobilizer’ then it is most likely that the immobilizer / key / instrument cluster or transponder antenna has failed, this is a costly repair – we have an easier solution! – send us your ECU and we will remove the immobilizer so the car will start & run as normal. Please note: If you are replacing your ECU because of an immobilizer fault (Lost key / Transponder problem etc) this ECU will run perfectly although the immobilizer light may be illuminated – this will need to be removed or covered from the instrument cluster (if you do not want it illuminated), if however you have a working key & you are replacing the ECU because of an ECU fault then the light will go out as normal and will not need removing – feel free to contact us for more information. We can also remove the immobiliser from other VAG ECU’s – Bosch  EDC15 / EDC16 / EDC17 / MED9.5.10 / ME7 – Siemens 3PA 3PG and many more! – Please check our database for our other listings *Please note for cloning services please ensure your original & donor parts have matching part numbers! We will not be held responsible for compatibility issues if you supply incorrect parts*

Example part numbers
ME17.5.20:

0261S06093 – 0261S06894 – 0261S06837 – 0261S06838 – 0261S06892 – 0261S06893 – 0261S07148 – 0261S07149 – 0261S07150 – 0261S07151 – 0261S07152 – 0261S07153 – 0261S07154 – 0261S07155 – 0261S07156 – 0261S07157 – 0261S07181 – 0261S07182 – 0261S07185 – 0261S07186 – 0261S07500 – 0261S07501 – 0261S07502 – 0261S07503 – 0261S07504 – 0261S07505 – 0261S07506 – 0261S07507 – 0261S07508 – 0261S07509 – 0261S07510 – 0261S07511 – 0261S07778 – 0261S07779 – 0261S07956 – 0261S08073 – 0261S08287 – 0261S08288 – 0261S08289 – 0261S12188

ME17.5.24:

0261S08574

ME17.5.26:

0261S09676 – 0261S09909 – 0261S10239 – 0261S10468 – 0261S10469 – 0261S10470 – 0261S10742 – 0261S13733 – 0261S13732 – 0261S13734 – 0261S13735 – 0261S13736 – 0261S13737
