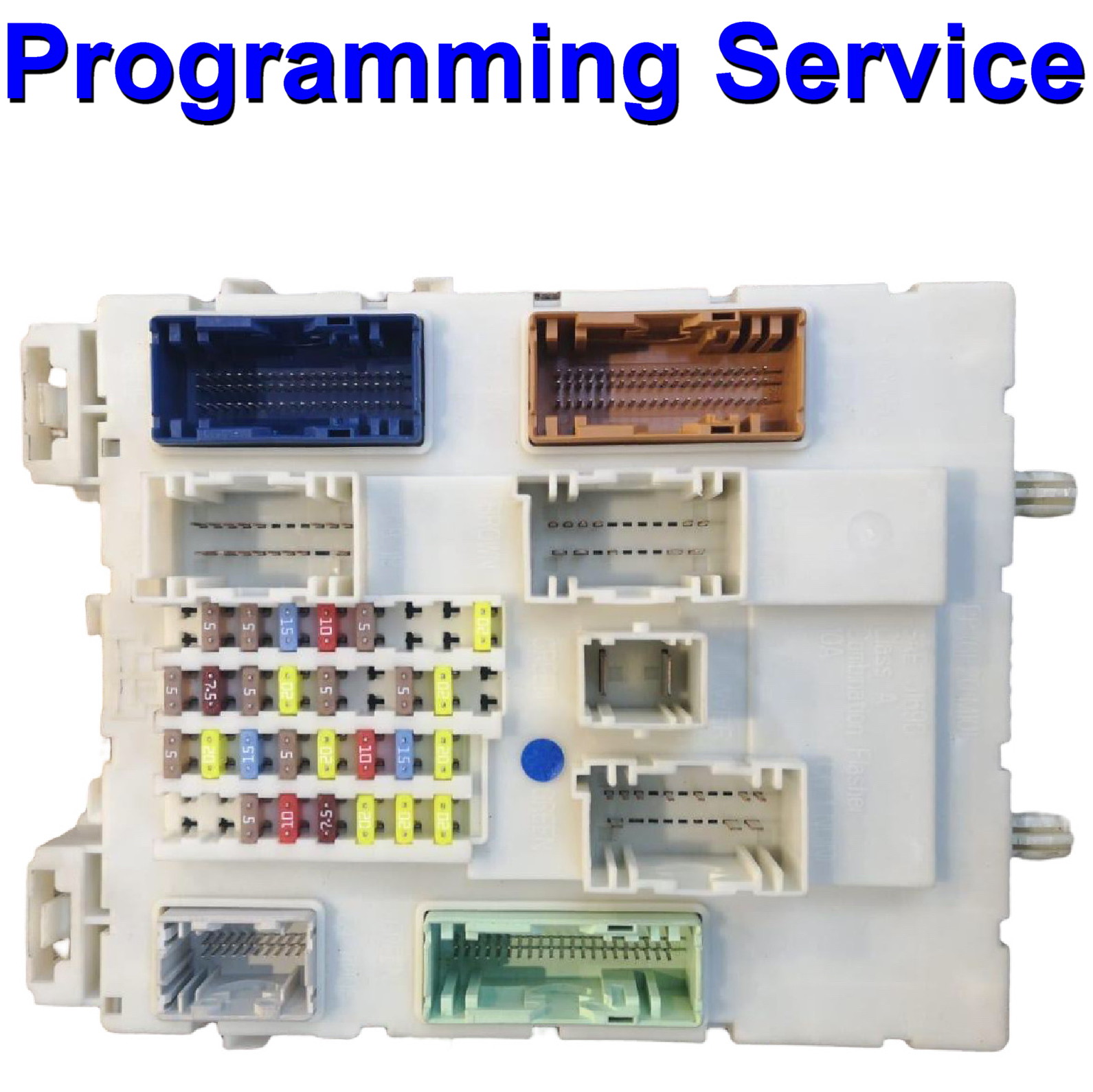

Ford Ranger BCM Body control module Lear Programming service / Headlight fault fix (U1000 / U3000 fault code reset)

Ford Ranger BCM Body control module Lear Programming service / Headlight fault fix (U1000 / U3000 fault code reset)

• The ‘U1000 / U3000 headlight fault fix (Data recovery)’ Option above is for when you have a Ford Ranger with one or both headlights not working and you have checked the bulbs, wiring etc and the fault cannot be found, check your BCM for fault codes – usually you will have U1000 & U3000 (Solid state driver protection activated) often accompanied with other fault codes such as: U1000-00 ‘Solid State Driver Protection Activated – Driver Disabled / Deactivated’ U3000-49 ‘Control Module’ B1D00-11 ‘Left Hand low Beam Circuit’ B1D00-15 ‘Left Hand low Beam Circuit’ B1D01-11 ‘Right Hand low Beam Circuit’ B1D01-15 ‘Right Hand low Beam Circuit’. This is a common internal error with these modules – Relax! If you are looking for how to fix this fault – We have the solution!. Simply send us the Body Control Module for resetting and at a fraction of the cost of a new unit (New units are apx £800+VAT + fitting & programming).We can restore the function of the BCM to its original working state. Our turnaround time for this job is usually within 48hrs & your item is posted back fully tracked by DPD next day.
• The ‘Cloning Service’ Option above is If you have a faulty Electronic Control Unit (ECU) / Module on your vehicle, for example it may be water damaged or have a blown component and are looking to replace the unit you may be aware that you cannot simply remove a unit from another vehicle & install it onto yours as the unit is ‘Locked’ to a different vehicles electronic / immobilizer system. We have the solution! Simply send us your original (Faulty) unit & the donor (Replacement) unit & will will transfer the data from your original to the replacement enabling the used unit to work on your vehicle with no further programming necessary. In most cases we can extract the necessary data whether your original unit is completely dead with ‘No communication’ with a diagnostic scanner. Once the donor unit has been programmed (Cloned) your vehicle will then start & run, the mileage display & the central locking etc will be unaffected & operate as it should.

*Please ensure, before refitting the BCM, that all electrical faults have been rectified eg. short circuits, blown bulbs (replace with new), and no aftermarket modifications (such as additional lights or LED bulbs that have been wired in). These must be returned to factory state.

Example Ford Ranger BCM part numbers:
AB39-14A073-xx – All part numbers including:
AB39-14A073-AL
DB39-14A073-xx – All part numbers including:
DB39-14A073-BB
DB39-14A073-BC
DB39-14A073-BD
DB39-14A073-BE
DB39-14A073-BF
DB39-14A073-BL
DB39-14A073-CE
DB39-14A073-DB
DB39-14A073-DC
DB39-14A073-DD
BV6N-14A073-xx- All part numbers including:
BV6N-14A073-ET
